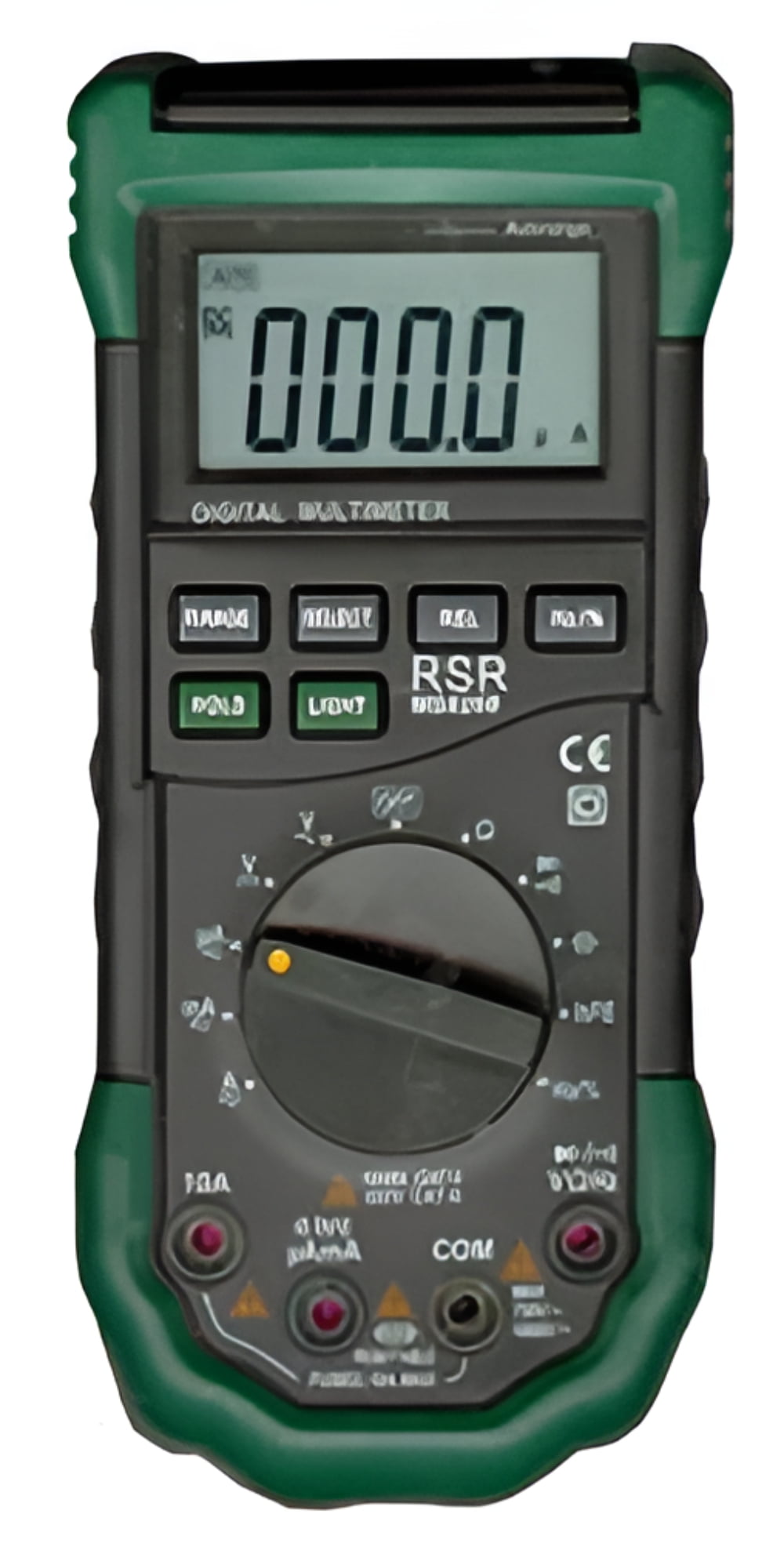

Mastech MS8268 Series Digital AC/DC Auto/Manual Range Digital Multimeter
Product details
| Management number | 230820536 | Release Date | 2026/06/18 | List Price | US$20.00 | Model Number | 230820536 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Mastech Sinometer MS8268 is an auto/manual ranging digital multimeter. It is packed with many nice features such as sound and light warning for the jacks and back-lit LCD screen. This meter is powered on 3 AAA batteries. Accessories include test leads & user manual. <br><br> Features: <br> • 3 3/4 digits LCD display <br> • LED / Sound Warning when incorrect banana jacks are used relative to function switch setting (volt, amp, resistance) <br> • Data hold and LCD back lit <br> • Manual ranging and auto range mode <br> • Safety as per IEC1010-1 Cat. II 600V and Cat. 1000V Cat. II <br><br> Technical Specifications: <br> • DCV: 400mV - 1000V, 5 ranges <br> • ACV: 400mV - 750V, 5 ranges <br> • Resistance: 400-40M, 6 ranges <br> • DC and AC Current: 400µ - 10A, 5 ranges <br> • Capacitance: 4n - 200u, 6 ranges <br> • Frequency: to 200KHz <br> • Resettable fuse inside <br> • Diode and transister test, audible continuity <br> • Dimension and Weight: 195 x 92 x 55mm; 400g <br> • Battery: 15.V x3 AAA

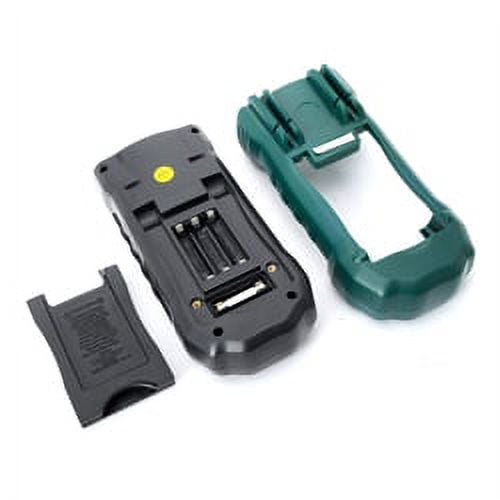

- The Mastech Sinometer MS8268 is an auto/manual ranging digital multimeter. It is packed with many nice features such as sound and light warnings for the jacks and a back-lit LCD screen. This meter is powered on 3 AAA batteries. Accessories include test leads and user manual.
Features:
- 3 3/4 Digits LCD
- LED / Sound Warning when incorrect banana jacks are used relative to function switch setting (volt, amp, resistance)
- Data hold and LCD backlit
- Manual ranging and auto range mode
- Safety as per IEC1010-1 Cat. II 600V and Cat. 1000V Cat. II
Technical Specifications:
- DCV: 400mV - 1000V, 5 ranges
- ACV: 400mV - 750V, 5 ranges
- Resistance: 400-40M, 6 ranges
- DC and AC Current: 400µ - 10A, 5 ranges
- Capacitance: 4n - 200u, 6 ranges
- Frequency: to 200KHz
- Resettable fuse inside
- Diode and transister test, audible continuity
- Dimension and Weight: 195 x 92 x 55mm; 400g
- Battery: 15. V x3 AAA"
| Multimeter type | Digital |
|---|---|
| Measurement type | DC Current Measurement |
| Features | Durable |
| Volts | 1000 V |
| Brand | Mastech |
| Display | Digital |
| Power type | Battery |
| Model | MS8268 |
| Screen size | 2.4 in |
| Weight | 2 lbs |
| Accessories | test leads & user manual |
| Has written warranty | No |
| Color | Green |
| Material | LCD |
